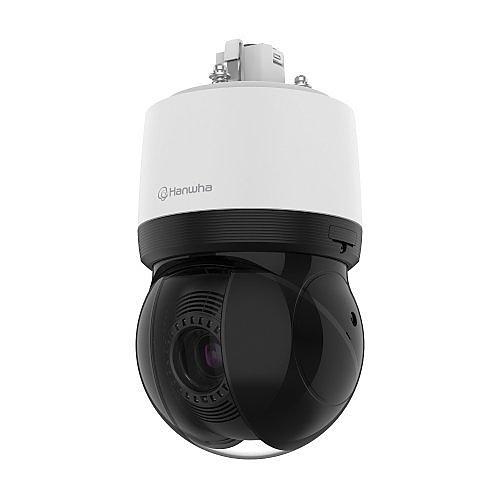

Hanwha XNP-C6403 2MP 40x AI PTZ Camera, 4.25-170mm Lens, IP66
XNP-C6403|SQ-XNPC6403
Hanwha XNP-C6403 2MP 40x AI PTZ Camera, 4.25-170mm Lens, IP66
XNP-C6403|SQ-XNPC6403
Key Features
- Max. 2MP resolution
- 4.25 To 170 mm (40x) Zoom (digital 32x, total 1280x zoom)
- Color, 0.05Lux (F1.6, 1/30sec); BW, 0.005Lux (F1.6, 1/30sec)
Key Features
- Max. 2MP resolution
- 4.25 To 170 mm (40x) Zoom (digital 32x, total 1280x zoom)
- Color, 0.05Lux (F1.6, 1/30sec); BW, 0.005Lux (F1.6, 1/30sec)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Max. 2MP resolution
- 4.25 To 170 mm (40x) Zoom (digital 32x, total 1280x zoom)
- Color, 0.05Lux (F1.6, 1/30sec); BW, 0.005Lux (F1.6, 1/30sec)
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-LUVR8CH6T
MODEL # VM-LUVR8CH6T
VM-LUVR8CH6T|VM-LUVR8CH6T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Camera with PTZ PLUS Design applied, compact, lighter, simple cabling. Includes Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking.
Main Features
- Max. 2MP resolution
- 4.25 To 170 mm (40x) Zoom (digital 32x, total 1280x zoom)
- Color, 0.05Lux (F1.6, 1/30sec); BW, 0.005Lux (F1.6, 1/30sec)
- Intelligent Analytics, Object auto tracking (Person/Vehicle), Target lock tracking
- H.264, H.265, MJPEG codec, WiseStream II
- IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
- PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
General Information
Name: Hanwha XNP-C6403 2MP 40x AI PTZ Camera, 4.25-170mm Lens, IP66
Category: Hanwha Vision, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 8801089224613
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-XNPC6403 Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNP-C6403 Product Model XNP-C6403 Product Name 2MP 40x AI PTZ Product Type PTZ Camera Weight 7.05lb
-
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 65.66°-1.88°,V: 39.4°-1.09° Maximum Aperture F1.6 Maximum Frame Rate 60 fps Minimum Focal Length 4.25mm Optical Zoom 40x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66
-
Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 165°F Minimum Operating Temperature -40°F Operating Humidity 100% RH (Condensing)
-
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.005 lux Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Focal Length 4.25-170 mm Lens Included Yes Maximum Focal Length 170 mm Minimum Aperture f/4.95
-
Remote Management Yes
-
Color Black, White Durability Dustproof, Impact Resistant, Waterproof Form Factor PTZ
-

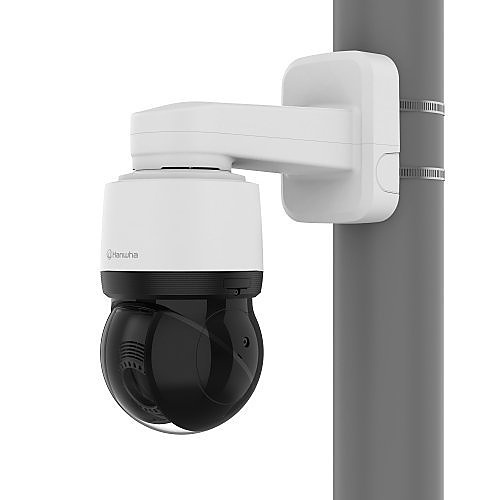

Diameter 6.2" Mount Type Ceiling Mount, Corner Mount, Pendant Mount, Pole Mount, Wall Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin VN Features Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Shock Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
