Product Overview
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

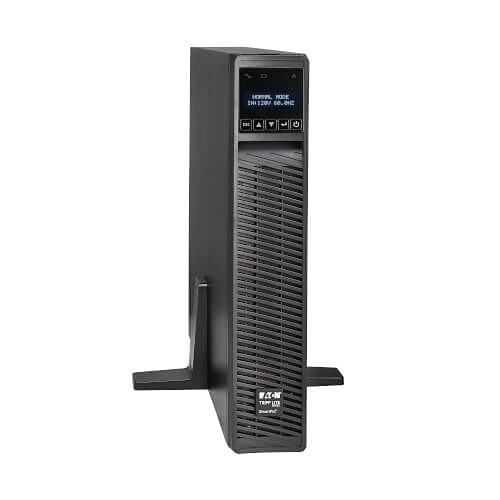

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rack-mount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
General Information
Name : Tripp Lite SMART2200RMXLN SmartPro Line Interactive UPS with LCD Display and Pre-Installed WEBCARDLX Network Interface, 1.92kW, 120V 2.2kVA, 2U , Tripp Lite by Eaton
Category : UPS
UPC Code : 037332177926
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-S2200RMXL
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SMART2200RMXLN
Packaged Quantity : 1
Product Line : SmartPro
Product Model : SMART2200RMXLN
Product Name : SMART2200RMXLN UPS System with Pre-installed SNMPWEBCARD
Product Series : SmartPro
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 26126.921
Technical Information
Backup/Run Time (Full Load) : 4.50 Minute
Backup/Run Time (Full Load) (Second) : 270
Backup/Run Time (Half Load) : 12 Minute
Backup/Run Time (Half Load) (Second) : 720
Hot Swappable : Yes
Output Voltage : 120V AC
Output Voltage (V AC) : 120
Overload Protection : Yes
Phase : Single Phase
Receptacle Detail : 4 x NEMA 5-15/20R, 4 x NEMA 5-15R
Receptacle Type : NEMA 5-15/20R, NEMA 5-15R
Transfer Time : 5 ms
Transfer Time (Second) : 0.005
USB (HID Compliant) Port : Yes
Battery Information
Battery Characteristics : Valve-regulated
Battery Chemistry : Lead Acid
DC System Voltage : 72 V DC
Replaceable Battery : Yes
Typical Battery Recharge Time : 4.50 hrs
Typical Battery Recharge Time (Second) : 16200
Category Specific Attributes
Output Voltage (V) : 120
Surge Energy Rating (J) : 380
Environmental Conditions
Maximum Operating Elevation : 10000 ft
Maximum Operating Elevation (mm) : 3048000
Maximum Operating Temperature : 104°F (40°C)
Maximum Operating Temperature (°F) : 104
Maximum Storage Elevation : 32808 ft
Maximum Storage Elevation (mm) : 9999878.4
Interfaces/Ports
EPO Port : Yes
Serial Port : Yes
Management
Alarm : Low Battery, Overload, Power Failure, Remote Shutdown, UPS Fault, UPS StartUp
Network Management : SNMP Manageable
Physical Characteristics
Application/Usage : Data Storage, IT Equipment, Server, Switch
Depth : 19.5"
Depth (mm) : 494.284
Form Factor : Rack, Tower
Height : 3.4"
Height (mm) : 87.122
Rack Height : 2U
Weight (Approximate) : 57.60 lb
Width : 17.3"
Width (mm) : 439.928
Power Description
Input Voltage : 120V AC
Input Voltage (V AC) : 120
Output Frequency : 60 Hz
Plug/Connector Type : NEMA 5-20P
Surge Energy Rating : 380 J
Waveform Type : Pure Sine Wave
Product Information
Load Capacity (VA) (W) : 1950VA|1950W
Load Capacity (W) : 2200.000
Software
Software Included : PowerAlert software
Warranty
Limited Warranty : 2-year
Miscellaneous
Package Contents : <ul><li>SMART2200RMXLN UPS system with Pre-installed SNMPWEBCARD</li><li>PowerAlert Software CD</li><li>USB Cable</li><li>Serial Cable</li><li>EPO Cable</li><li>4 Post Installation Kit</li><li>Owner's Manual</li></ul>
TAA Compliant : yes
