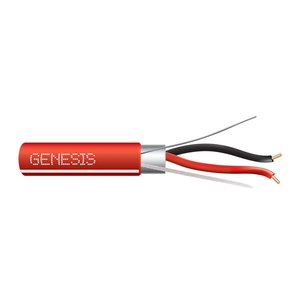

Genesis 4606104W 16 AWG 2C Solid Shielded Plenum Fire Cable, Red w/ White Stripe, 1000' Reel

Brand: Genesis
ADI #:WG-4606104W Model #: 4606104W  Name: Genesis 4606104W 16 AWG 2C Solid Shielded Plenum Fire Cable, Red w/ White Stripe, 1000' Reel
  • Solid bare copper conductors
  • Overall foil shield
  • Rated for plenum, riser, and general purpose indoor installation
Genesis 16/2 Sol Shielded Plenum 1000 Rl Red/White

Product Overview

This Genesis® cable features 2 solid 16 AWG copper conductors, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for a dependable fire alarm system wiring solution.

General Information

Name : Genesis 4606104W 16 AWG 2C Solid Shielded Plenum Fire Cable, Red w/ White Stripe, 1000' Reel , Genesis
Category : Plenum Shielded Cables
UPC Code : 886618268090
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : WG-4606104W
Brand Name : Genesis
Manufacturer : Genesis Cable
Manufacturer Part Number : 4606104W
Product Name : Bare Wire Control Cable
Product Type : Control Cable

Technical Information

American Wire Gauge : 16AWG
Cable Type : Bare Wire
Device Supported : Fire Alarm System
Jacket Type : Plenum
Number of Conductors : 2
Shielding : Yes

Physical Characteristics

Cable Length : 1000'
Cable Length (mm) : 304800
Color : Red
