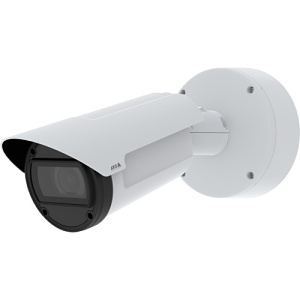

AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White
Q1809-LE
|Z4-03019001
Shop All Axis Communications
AXIS Q1809-LE 150 mm 41MP Bullet Camera, 50-150mm Varifocal Lens, 3x Optical Canon Zoom Lens, White
Q1809-LE | Z4-03019001
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Built on a dual Axis system-on-chip, this all-in-one, outdoor-ready bullet camera delivers superior 41 MP resolution. And a 4/3” image sensor ensures exceptional low-light performance. It’s available with a wide lens for open areas or a tele lens for surveillance from a distance. Enclosed in a robust aluminum casing, it includes a mounting arm for easy installation. Plus, a spacious back box ensures secure cable management. Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. Furthermore, PoE out lets you connect and power another device without additional cabling.
Specifications
ADI Part Number Z4-03019001 Brand Name AXIS Communications Manufacturer Axis Communications Manufacturer Part Number 03019-001 Product Model Q1809-LE Product Name AXIS Q1809-LE 150 mm Product Series Q18 Product Type Fixed cameras Supported Network Protocols IPv6 USGv6, NIST SP500-267
Aperture f/4.0 Effective Camera Resolution 41MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Frame Rate 30fps Minimum Focal Length 5mm Night Vision Yes Night Vision Type Infrared (IR) Optical Zoom 3x Video Formats H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG Video Resolution Yes
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67
Image Sensor Size 4/3" Maximum Video Resolution 7424 x 5568
Maximum Operating Temperature 131°F Minimum Operating Temperature 4°F Operating Humidity 10-100% Operating Temperature (T-T) -40-131°F
Longest Shutter Speed 2 Second Minimum Illumination 0.04 lux Shortest Shutter Speed 1/10500 Second
Focal Length 50-150mm Lens Included Yes Maximum Focal Length 150mm
Memory Card Supported Yes
Remote Management Yes
ADI Part Number Replaces CZ-0963001, Z4-01118001 Model Number Replaces 01118-001, 0963-001
Color White Durability Impact Resistant Form Factor Bullet Height 7.2" Package Type Box
Input Voltage 10-28V DC, 20-24V AC Maximum Power Consumption 51W Power over Ethernet (PoE) Yes
Diameter 4.5"
Recording Formats 8K Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Certifications CISPR 32 Class A, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES(A)/NMB(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Certifications & Standards ONVIF G, ONVIF M, ONVIF S, ONVIF T Environmental Certification EU RoHS, REACH, RoHS Environmentally Friendly Yes Features Built-in cybersecurity with Axis Edge Vault, High light-sensitive 4/3" sensor, Out-of-the-box and outdoor-ready, Superior image quality in 8K, Wide or tele Canon lens Impact Protection Rating IK08, IK10 Indoor/Outdoor Outdoor Package Contents Camera, Extra cable gasket, Extra screw gaskets, Installation Guide, Owner authentication key, RJ45 Cable
