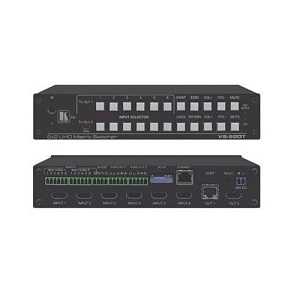

VS-62DT is a 6x2 4K@60Hz (4:2:0) HDMI/HDBaseT matrix switcher with HDMI and HDBaseT output transmitters that provide long-reach video and audio transmission. It supports resolutions of up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a PoE provider that provides power over Ethernet to compatible PoE receivers.

• Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
• Max. Resolution - 4K@60Hz (4:2:0).
• HDCP 1.4 Support.
• HDMI 1.4 Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
• Routing - Six HDMI inputs can be routed to an HDMI and HDBaseT output.
• Power-over-Ethernet - Supply of PoE to compatible receivers.
• EDID Capture - Copies and stores the EDID from a display device per input.
• Programmable Step-in Functionality - When used together with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• True Video Clock Detection.
• Advanced Auto AV Switching - Last connected and priority switching modes.
• Non-Volatile EDID Storage.
• Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Lock Button - Prevents tampering with front panel buttons.
• Internal Pattern Generator.
• Kramer Protocol 3000 Support.
• Static or Dynamic DHCP IP Addressing.
• Flexible Control Options - Front panel buttons, IR remote (included), RS-232, Ethernet, contact closure, embedded Web server and step-in.
• Mini-USB Port - For upgrading firmware.

APPLICATIONS

• Conference rooms
• Entertainment
• Hospitality
