Product Overview
1500VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 100V, 110V or 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 100V, 110V or 120V nominal output over an input voltage range of 95-145V. Includes NEMA 5-15P input plug and 8 UPS-supported NEMA 5-15R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. 2 Year Warranty standard. 3 Year Warranty with product registration.
General Information
Name : Tripp Lite SMART1500SLT SmartPro Line Interactive UPS Tower, 900W, 120V, 1.5kVA, 8-Outlet , Tripp Lite by Eaton
Category : UPS
UPC Code : 037332119896
Country of Origin : China. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-SMT1500SL
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : SMART1500SLT
Packaged Quantity : 1 Each
Product Line : SmartPro
Product Name : SmartPro 1500SLT UPS
Product Type : Line-interactive UPS
Weight (Approximate) (g) : 21500.278
Technical Information
Backup/Run Time (Full Load) : 6 Minute
Backup/Run Time (Full Load) (Second) : 360
Backup/Run Time (Half Load) : 17 Minute
Backup/Run Time (Half Load) (Second) : 1020
Hot Swappable : Yes
Output Voltage : 120 V AC
Output Voltage (V AC) : 120

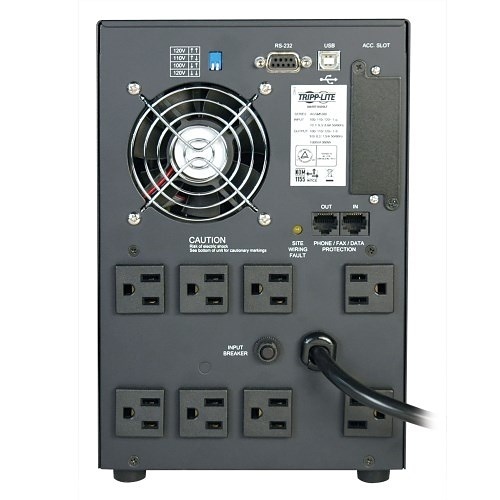

Receptacle Detail : 8 x NEMA 5-15R
Receptacle Type : NEMA 5-15R
Battery Information
Battery Chemistry : Lead Acid
Battery Life : 6 Year
Battery Life (Second) : 189341556
Typical Battery Recharge Time : 4 Hour
Typical Battery Recharge Time (Second) : 14400
Controls/Indicators

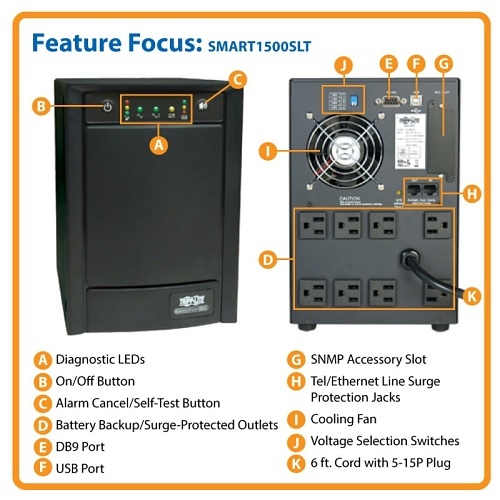

Status Indicators : Includes 14 front panel LEDs to indicate line / battery power status, over / under voltage correction, battery charge level (4 LEDs), load percentage (4 LEDs), overload and replace battery. 1 rear panel site wiring fault indicator.
Management
Alarm : On Battery, Overload
Network Management : SNMP Manageable
Physical Characteristics
Depth : 16.8"
Depth (mm) : 425.45
Form Factor : Tower
Height : 8.8"
Height (mm) : 222.25
Weight (Approximate) : 47.40 lb
Width : 6.8"
Width (mm) : 171.45
Power Description
Input Voltage : 110 V AC
Input Voltage (V AC) : 110
Plug/Connector Type : NEMA 5-15P
Waveform Type : Sine Wave
Product Information
Load Capacity (W) : 1500.000
Warranty
Limited Warranty : 3 Year
Miscellaneous
Country of Origin : China
Package Contents : <ul><li>SmartPro 1500SLT UPS</li><li>SMART 1500SLT UPS System</li><li>PowerAlert Software CD-Rom</li><li>USB and serial cabling</li><li>User manual with warranty information</li></ul>
